Aluminum Overhead Coiling Shutter Door / Security Coiling Door

제품 상세정보

인증: CCC, ISO9001, CE

지불과 운송 용어

Minimum Order Quantity: 50

가격: 52.5

최고의 가격을 얻으십시오

지금 연락하세요

사양

설명

사양

강조하다:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  aluminum coiling shutter door, security roller shutter door, overhead coiling door with warranty


Model NO.:	HA80	Open Style:	Rolling
Opening Type:	With Remote Control	Special Function:	Security
Color:	Any Ral Color	Position:	Industrial
Surface Finishing:	Finished	Transport Package:	as Request
Specification:	80mm	Trademark:	HOFUL
Origin:	Made in China	HS Code:	761010
Production Capacity:	5000 Square Meters/ Month

Model NO.:	HA80
Open Style:	Rolling
Opening Type:	With Remote Control
Special Function:	Security
Color:	Any Ral Color
Position:	Industrial
Surface Finishing:	Finished
Transport Package:	as Request
Specification:	80mm
Trademark:	HOFUL
Origin:	Made in China
HS Code:	761010
Production Capacity:	5000 Square Meters/ Month

설명

Aluminum Overhead Coiling Shutter Door / Security Coiling Door

Aluminum Roller Shutter Door - HA80 Series

Ideal Applications

Commercial shops
Factories
Warehouses
Residential garages
Club bars
And more

Key Functions

Safety and security
Theftproof design
Heat insulation
Weather resistant
Rustproof construction
Sound insulation

Motorized Operation Polycarbonate Rolling Shutter Door

Technical Specifications

Component	Specifications

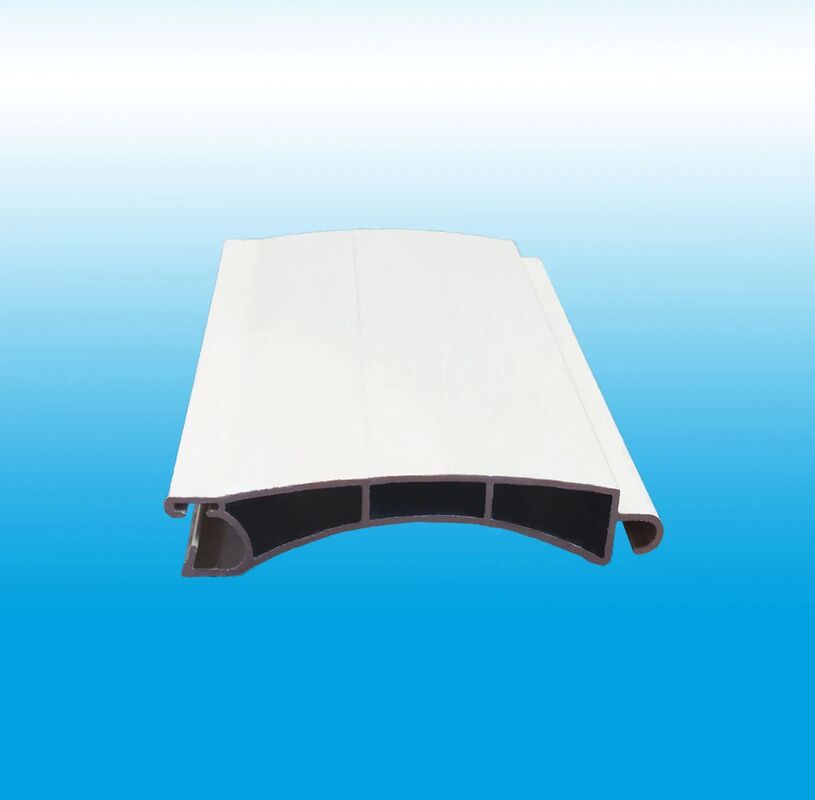

Double Skinned Aluminum Slat (HA80)	Width: 80mm Thickness: 1.0mm, 1.2mm Standard Colors: White, Beige Other RAL colors available
Aluminum Bottom Rail	Made of extruded aluminum
Aluminum Guide Rail	Heavy duty extruded aluminum "U" guide rail 8036mm or 9036mm (WidthDepthThickness) Includes brush strip for quiet operation
Switch Button	Stainless steel cover box for operating rolling shutter
Endless Chain	Manual operation capability during power outages
Rolling Shutter Motor	Option 1: HOFUL brand side motor (CE certified) Capacities: 400KG, 600KG, 800KG, 1000KG, 1300KG, 1500KG, 2000KG Voltage/Frequency: 220V/50Hz, 380V/50Hz, 110V/60Hz Option 2: DOOYA tubular motor (CE certified) Capacities: 60N, 80N, 120N, 140N, 230N, 300N Voltage/Frequency: 230V/50Hz, 120V/60Hz
Shutter Box (Hood)	Galvanized steel or aluminum (optional)
Shaft (Barrel)	Galvanized steel Sizes: 3", 5", 6", 8", 10" (depending on shutter size)
Bearing	Retractable design, welded according to shutter width
End Plate	Heavy duty steel, fixed on both sides of the shaft
End Clip	Plastic construction, prevents lateral movement of curtain
