Aluminum Roller Slats Roller Shutter Blade Rolling Shutter Door

제품 상세정보

인증: ISO9001, CE

지불과 운송 용어

Minimum Order Quantity: 1

최고의 가격을 얻으십시오

지금 연락하세요

사양

설명

사양

강조하다:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  aluminum roller shutter slats, rolling shutter door blades, aluminum roller shutter door


Model NO.:	HA65	Open Style:	Rolling
Opening Type:	With Remote Control	Special Function:	Security
Color:	White	Position:	Exterior
Surface Finishing:	Finished	Opening and Closing Mode:	Automatic
Style:	Fashion	Hardness:	Hard
Application:	Extensive	Transport Package:	Plywood Case
Specification:	65 mm	Trademark:	HOFUL
Origin:	Made in China	HS Code:	761010
Production Capacity:	8000 Squares/Meter Per Month

Model NO.:	HA65
Open Style:	Rolling
Opening Type:	With Remote Control
Special Function:	Security
Color:	White
Position:	Exterior
Surface Finishing:	Finished
Opening and Closing Mode:	Automatic
Style:	Fashion
Hardness:	Hard
Application:	Extensive
Transport Package:	Plywood Case
Specification:	65 mm
Trademark:	HOFUL
Origin:	Made in China
HS Code:	761010
Production Capacity:	8000 Squares/Meter Per Month

설명

Aluminum Roller Slats Roller Shutter Blade Rolling Shutter Door

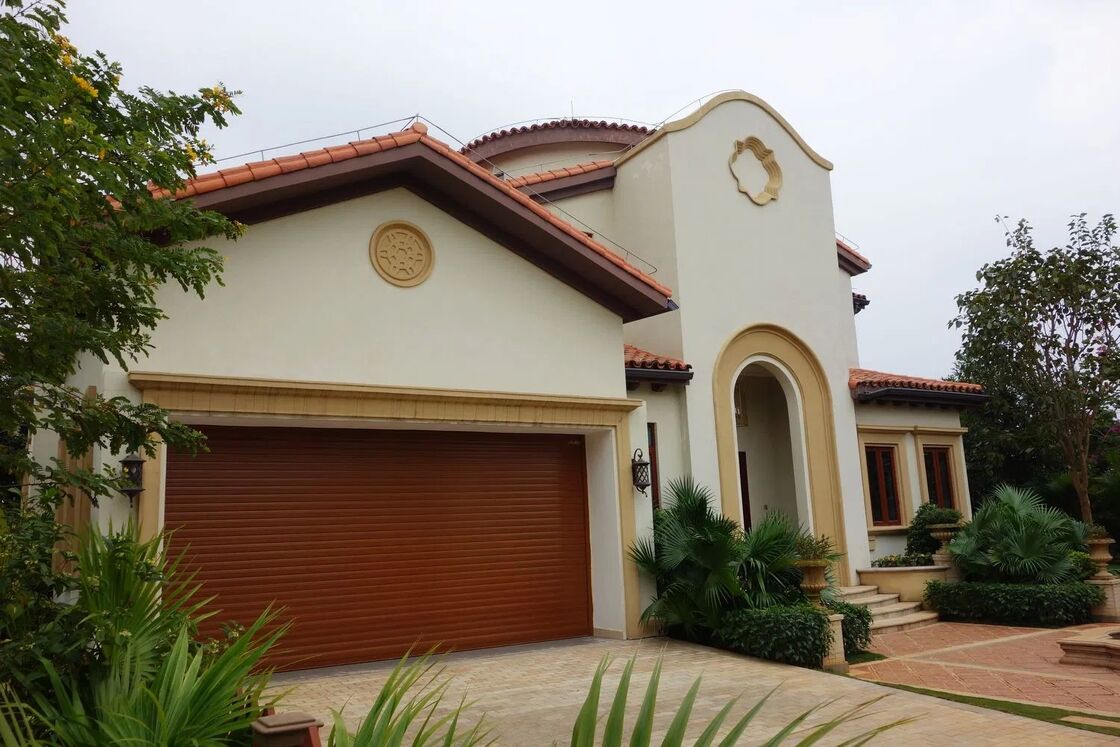

Aluminum roller slats and roller shutter blades provide an ideal security solution for various applications including commercial shops, factories, warehouses, residential garages, club bars, and more.

Key Functions & Benefits

Enhanced safety and security
Theft-proof design
Heat insulation properties
Weather resistant construction
Rustproof materials
Sound insulation capabilities

Technical Specifications

1. Slat

Width: 65mm

Thickness: 1.2mm

Color: White, Beige, Custom-made colors available

2. Aluminum Bottom Rail

Made of extruded aluminum

3. Aluminum Guide Rail

Heavy duty extruded aluminum "U" guide rail

Dimensions: 80×36mm or 90×36mm (Width×Depth×Thickness)

Includes brush strip for quiet operation

4. Switch Button

Switch button for operating rolling shutter

Includes stainless steel cover box

5. Endless Chain

Manual operation capability during power outages

6. Rolling Shutter Motor Options

Option 1: HOFUL Brand Side Motor
CE certified, capacities: 400KG, 600KG, 800KG, 1000KG, 1300KG, 1500KG, 2000KG
Voltage/Frequency: 220V/50Hz, 380V/50Hz, 110V/60Hz

Option 2: DOOYA Tubular Motor
CE certified, capacities: 60N, 80N, 120N, 140N, 230N, 300N
Voltage/Frequency: 230V/50Hz, 120V/60Hz

7. Shutter Box (Hood)

Galvanized steel or aluminum construction (optional)

8. Shaft (Barrel)

Galvanized steel construction

Sizes: 3", 5", 6", 8", 10" (size dependent on rolling shutter dimensions)

9. Bearing

Retractable design

Welded fixation according to rolling shutter width

10. End Plate

Heavy duty steel construction

Fixed on both sides of the shaft
